Soft Urethane Foam Tape with Mylar Film - U6300

Material Category	Plastic
Material	Polyurethane, Urethane
Cell Structure	Open Cell
Stock or Special Order	Stock
Type of Tape	Single Sided
Adhesive	Acrylic
Thickness	1/16", 1/8", 3/16", 1/4", 3/8"
Produced as	Rolls, Spools, Sheets, Pre-Cut Shapes
Roll Widths	1/4" to 54" wide
Softness	Soft
Color	Black
Texture	Skin
Durability	Great
Material Price	Above Average
Foam High Temperature Rating	250 F
Foam Low Temperature Rating	-40 F
Outdoor	Good
UV Exposure	Good
Adhesive Temperature Range	-20 F to 200 F (Acrylic)
Compression Deflection	5-11 psi, 25% compression
Durometer Shore	50-70 OO
Density	15-30 lb/ft³
Tensile Strength	40-120 PSI
Compression Set	5%
Elongation	100%
Tear Strength	9-17 pli
UL Rating	Yes, UL 94 HBF, UL 508, UL 50, UL JMST2
Flammability	FMVSS-302, UL 94 HBF, CSA C22.2 No. 94-M91
Thermal Conductivity	.45-.8827 BTU-IN/FT²-HR-°F
Additional Specs	Fogging SAE J-1756, Good Mildew and Bacteria Resistance, Outgassing .7-1.0% TML, Roger's PORON 4701-40
Application	Doors
Industry	Automotive
Reach / RoHS	Yes
Made in:	Bolingbrook, IL USA
Test Methods:	See technical data sheets for full data and test methods.
Disclaimer a:	Technical data presented above is the foam/material prior to the adheisve.
Disclaimer b:	End user is responsible for determining the suitability of the product to application.
Terms and Conditions	https://www.preson.com/terms-conditions.
Sku	U6300

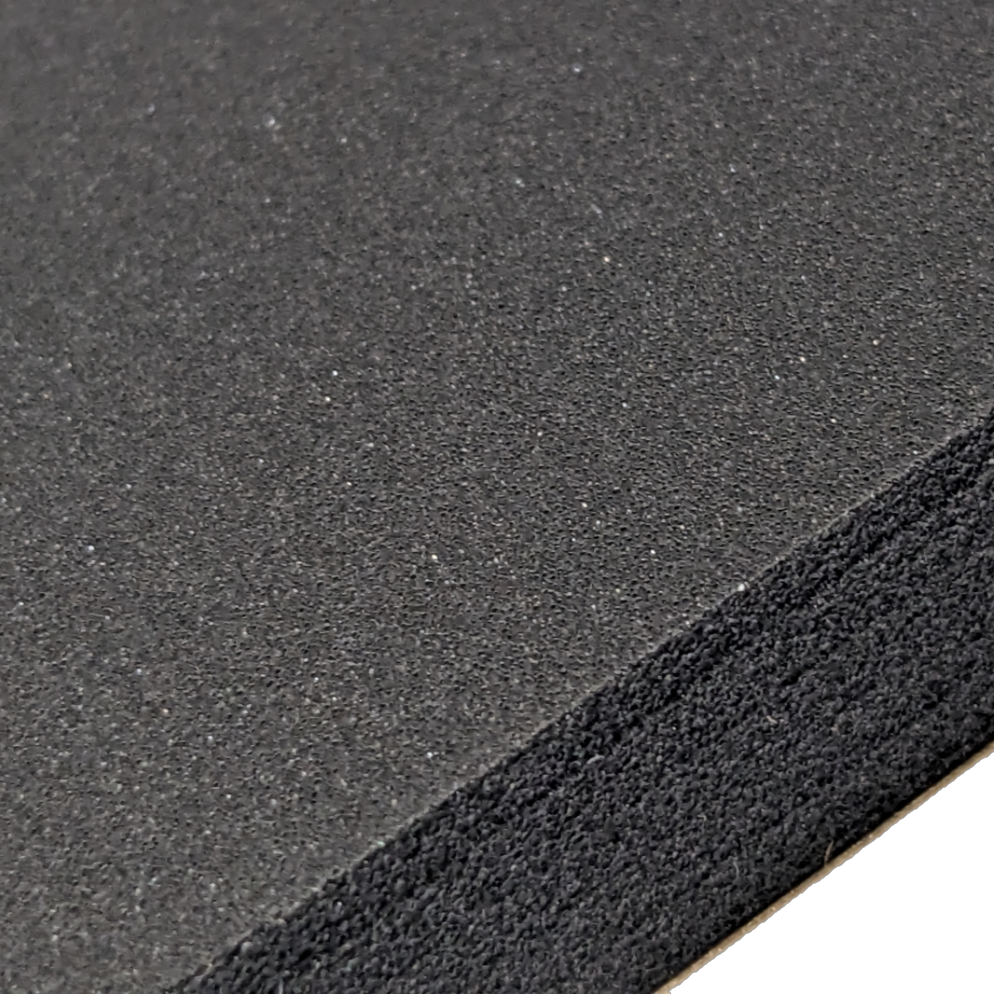

Urethane Foam Tape. Open cell soft, black, with a smooth skin surface.

Durable foam with an industry leading adhesive bond. Great for most automotive, electronic, battery, medical device, door gasket applications.

Adhesive: Pres-On’s superior direct wet coat high-tack permanent acrylic pressure sensitive adhesive (PSA) on one side with easy-to-use release liner.

This U6300 series has a special mylar film carrier for added support. See our U6100 series for the same product without the Mylar film.
Poron® 4701-40 Soft
Produced in rolls, sheets, pre-cut (digital & die-cut) shapes, spools, and other customizable options.
