Firm Double Sided PVC Foam Tape - VF20300 - Pres-On

Material Category	Plastic
Material	PVC
Cell Structure	Closed Cell
Stock or Special Order	Stock
Type of Tape	Double Sided, Plain, no adhesive
Adhesive	Acrylic
Thickness	1/16", 1/8"
Produced as	Rolls, Spools, Sheets, Pre-Cut Shapes
Roll Widths	1/4" to 54" wide
Softness	Firm
Color	Gray
Texture	Smooth
Durability	Good
Material Price	Mid-Range
Foam High Temperature Rating	172 F
Foam Low Temperature Rating	-40 F
Outdoor	Good
UV Exposure	Good
Adhesive Temperature Range	-20 F to 200 F (Acrylic)
Compression Deflection	3.5 psi, 25% compression
Durometer Shore	44 OO
Density	13-17 lb/ft³
Tensile Strength	70 PSI
Elongation	187%
Flammability	Yes, FMVSS-302
Chemical Resistance	Excellent
Reach / RoHS	Yes
Made in:	Bolingbrook, IL USA
Test Methods:	See technical data sheets for full data and test methods.
Disclaimer a:	Technical data presented above is the foam/material prior to the adheisve.
Disclaimer b:	End user is responsible for determining the suitability of the product to application.
Terms and Conditions	https://www.preson.com/terms-conditions.
Sku	VF20300

PVC Double Sided Foam Tape. Closed cell firm, gray, with a smooth skin surface.

Double sided cushioning and gap filling foam with an industry leading adhesive bond. Great for most weatherproof gasketing, general industrial, HVAC, filtration applications.

Adhesive: Pres-On’s superior direct wet coat high-tack permanent acrylic pressure sensitive adhesive (PSA) on both sides with easy-to-use release liner.

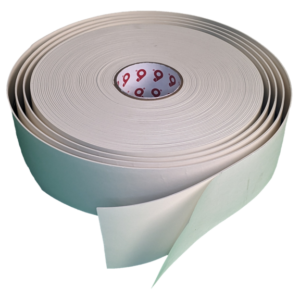

Also available in Black (VF20200 series), White (VF20100 series). Available in single sided in our VF10300 series. Or without adhesive backing.

Produced in rolls, sheets, pre-cut (digital & die-cut) shapes, spools, and other customizable options.
