Foil and Silicone Foam Tape - FS100 - Heat Shield

Material Category	Engineered Materials, Rubber / Synthetic Rubber
Material	Silicone Foam with Aluminized Fabric
Cell Structure	Open Cell
Type of Tape	Single Sided
Adhesive	Acrylic
Thickness	2.5mm, 5mm
Produced as	Rolls, Sheets, Pre-Cut Shapes
Softness	Soft
Color	White
Texture	Smooth
Durability	Great
Foam High Temperature Rating	392 F
Foam Low Temperature Rating	-67 F
Adhesive Temperature Range	-31 to 300 F
Tensile Strength	20 psi
Compression Set	6%
Elongation	60%
Flammability	Yes, FMVSS-302
Thermal Conductivity	0.067 W/m K
Dielectric Strength	55 Volts / mil
Dielectric Constant (1 kHz)	1.6
Dissipation Factor (1 kHz)	0.0251
Dry Arc Resistance	99 seconds
Reach / RoHS	Yes
Test Methods:	See technical data sheets for full data and test methods.
Disclaimer:	End user is responsible for determining the suitability of the product to application.
Terms and Conditions	https://www.preson.com/terms-conditions.
Sku	FV7200

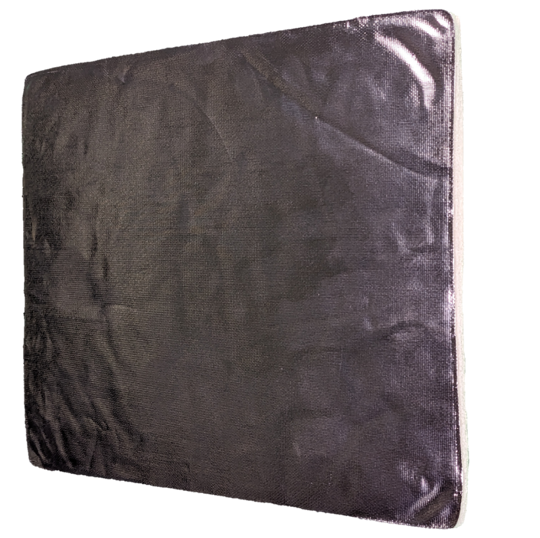

Heat Shield Silicone foam tape with aluminized fabric face. This adhesive backed combination of extra soft silicone foam with aluminized fabric provides a quality heat-shielding insulator and fire-resistance. The soft density cellular foam is ultra conformable, combined with the aluminized fabric can easily conform to irregular surfaces to create a protective barrier to aid in heat management.

The FS1000 Series passes FMVSS302 flammability tests. The material is comprised of a smooth aluminized fabric and low-density silicone foam.

Applications include commercial and military vehicles, HVAC, lighting, motor housing, construction insulation, appliances, and other applications that require foam insulation with fire retardancy.
