EPDM Foam Tape - P9200 - Pres-On

Material Category	Rubber / Synthetic Rubber
Material	EPDM
Cell Structure	Closed Cell
Stock or Special Order	Stock
Type of Tape	Single Sided, Plain, no adhesive
Adhesive	Acrylic
Thickness	1/16", 1/8", 3/16", 1/4", 3/8", 1/2"

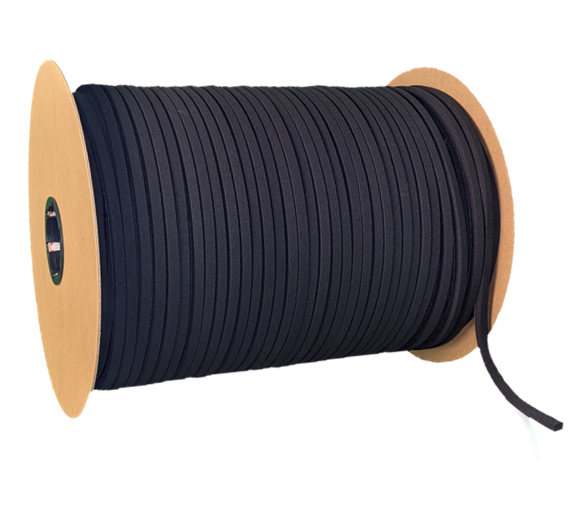

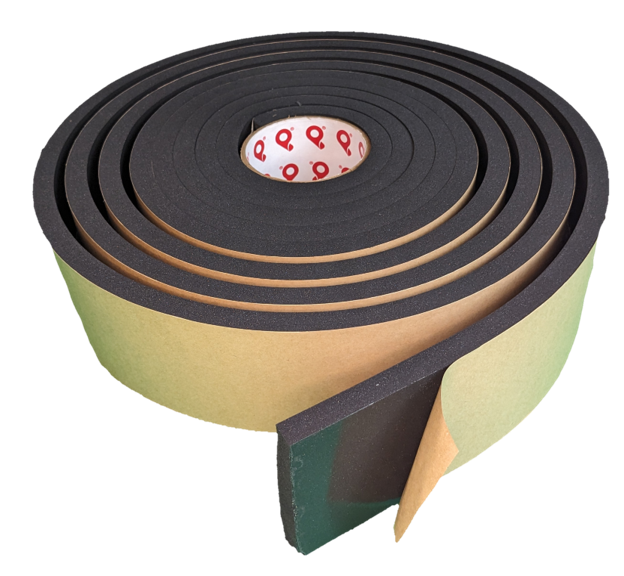

Produced as	Rolls, Spools, Sheets, Pre-Cut Shapes
Roll Widths	1/4" to 40" wide
Softness	Soft
Color	Black

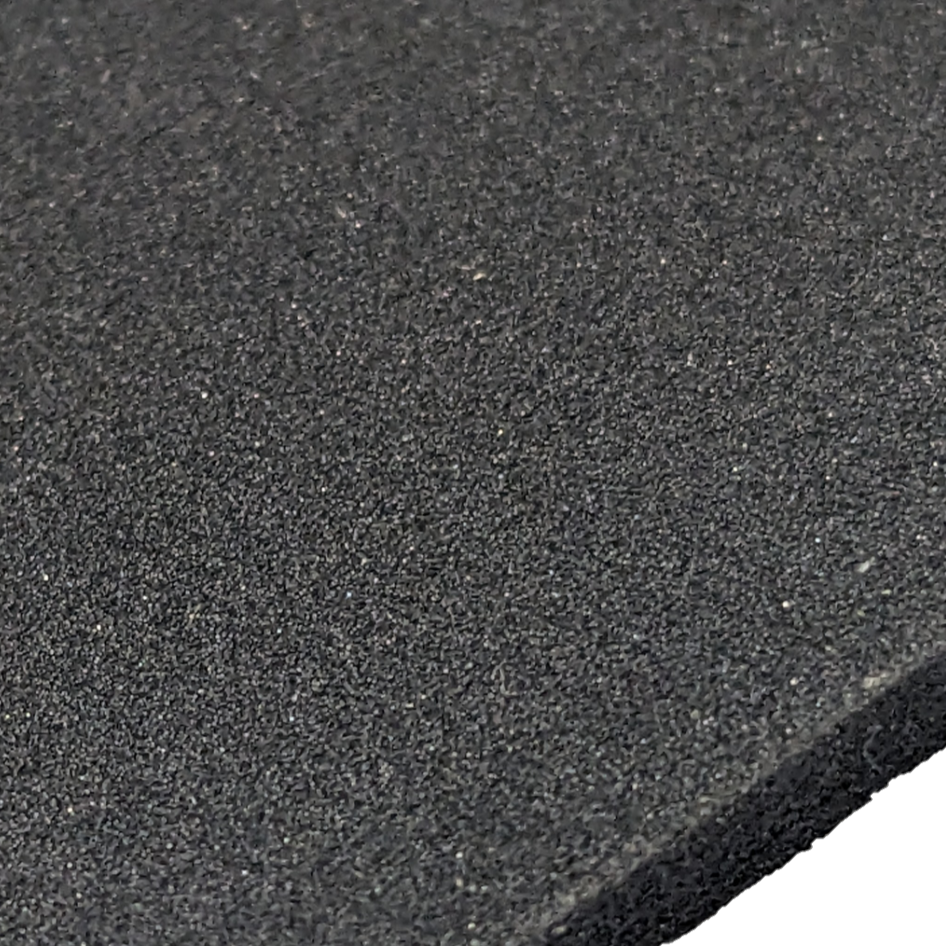

Texture	Smooth
Durability	Great
Material Price	Above Mid-Range
Foam High Temperature Rating	220 F
Foam Low Temperature Rating	-70 F
Outdoor	Excellent
UV Exposure	Excellent
Adhesive Temperature Range	-20 F to 200 F (Acrylic)
ASTM D1056 Classification	2A1
ASTM D 1056-67 (outdated)	SCE 41
Compression Deflection	2-5 psi, 25% compression
Durometer Shore	30-50 OO
Density	3-6 lb/ft³
Tensile Strength	40 psi
Compression Set	45%
Elongation	150%
UL Rating	Yes, UL 508, UL 50E, UL 50, UL 48
Flammability	Yes, FMVSS-302
NEMA Rating	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3RX, NEMA 3S, NEMA 3SX, NEMA 3X, NEMA 4, NEMA 4X, NEMA 5, NEMA 6, NEMA 6P, NEMA 12, NEMA 12K, NEMA 13
Additional Specs	GMW 17408 Class I Type IV
Application	Air Filter, Clean Rooms, Construction, Data Center, Display, Doors, Electronics, Enclosures, HVAC, Marine, RVs, Trailer
Industry	General Industrial, Insulation, Sound Absorption
Reach / RoHS	Yes
Made in:	Bolingbrook, IL USA
Test Methods:	See technical data sheets for full data and test methods.
Disclaimer a:	Technical data presented above is the foam/material prior to the adheisve.
Disclaimer b:	End user is responsible for determining the suitability of the product to application.
Terms and Conditions	https://www.preson.com/terms-conditions.
Sku	P9200

EPDM Foam Tape. Closed cell soft, black, with a smooth surface.

Great quality with excellent UV and temperature resistance foam with an industry leading adhesive bond. Great for most all indoor / outdoor gasket applications.

Adhesive: Pres-On’s superior direct wet coat high-tack permanent acrylic pressure sensitive adhesive (PSA) on one side with easy-to-use release liner.

Also available as special order in double sided foam tapes, or plain, without adhesive backing.

Produced in rolls, sheets, pre-cut (digital & die-cut) shapes, spools, and other customizable options.
