Neoprene Foam Tapes
Neoprene foam and neoprene foam tape are a versatile synthetic rubber material that is widely used in various applications. It is known for its excellent resistance to weathering, aging, and chemicals, making it a reliable material for various industrial and commercial uses. Neoprene foam offers exceptional thermal insulation properties, as well as outstanding resistance to high and low temperatures.
Pres-On neoprene foam tape is widely used in industries such as construction, enclosures, electronics, and HVAC. It is commonly used for sealing applications, gasketing, and cushioning. Additionally, Neoprene foam tape is also used for weatherstripping, vibration dampening, gap filling, gasketing, and cushioning purposes, providing a reliable solution for many industries.
Common Qualities of Neoprene Foam
Neoprene foam possesses several desirable physical properties. It demonstrates excellent compression resilience, allowing it to quickly regain its original shape and thickness after being
deformed. Additionally, neoprene foam is flexible, accommodating various shapes and contours. It also offers reasonable resistance to oil, with a medium swell, making it suitable for applications where exposure to oils is a concern.
Furthermore, neoprene foam exhibits exceptional thermal resistance, withstanding both high and low temperatures effectively. It is a durable material, able to withstand regular use and maintain its performance over time. Another advantageous feature is that neoprene foam is composed of closed cells, which are completely sealed off and not connected to each other. This closed-cell structure provides insulation and prevents the absorption of moisture.
Pres-On Products
Pres-On is a manufacturer and convertor that specializes in custom products. Nearly everything is made-to-order. Pres-On can deliver its neoprene foam products as neoprene tape rolls, long length spools for automation, custom die-cut parts, or kiss-cut shapes.
Pres-On’s capabilities include neoprene foam sheets with customizable length, width, and thickness. We can make neoprene rubber foam strips that are cut to specific dimensions. Additionally, Pres-On can produce custom gaskets, shapes, and parts based on technical drawings.
Neoprene and Neoprene Blended Products
NE4100 Neoprene Foam
Pres-On’s NE4100 is neoprene foam. It is a soft foam material with a smooth surface. Pres-On stocks NE4100 Neoprene with acrylic PSA on one side, but double-sided PSA or foam material with no adhesive is available as special order.
Pres-On’s NE4100 Neoprene is one of the best quality neoprene foams with an industry leading adhesive bond. It can withstand UV Exposure and works great for outdoor applications. NE4100 Neoprene foam can withstand temperatures as low as -70°F and temperatures as high as 200°F.
This material has flammability ratings for FMVSS-302, UL 94 HF-1, UL 94 HBF, and ASTM D6576. NE4100 Neoprene has an ASTM D1056 Classification of 2C1 which means it is a closed cell foam, is oil resistant with medium swell, and has a 25% compression deflection at 2-5 psi. Also, it has a density of 10 lb/ft³. Overall, the NE4100 Neoprene foam has excellent durability.
The NE4100 Neoprene from Pres-On is great for most HVAC, enclosure, construction and all gasket applications.
NE4300 Neoprene Foam
Pres-On’s NE4300 is neoprene foam. It is a firm foam material with a smooth surface. Pres-On stocks NE4300 Neoprene with acrylic PSA on one side, but double-sided PSA or foam material with no adhesive is available as special order.
Pres-On’s NE4300 Neoprene is one of the best quality neoprene foams with an industry leading adhesive bond. It can withstand UV Exposure and works great for outdoor applications. NE4300 Neoprene foam can withstand temperatures as low as -70°F and temperatures as high as 200°F.
This material has flammability ratings for FMVSS-302, UL 94 HF-1, UL 94 HBF, and ASTM D6576. NE4300 Neoprene has an ASTM D1056 Classification of 2C3 which means it is a closed cell foam, is oil resistant with medium swell, and has a 25% compression deflection at 9-13 psi. Also, it has a density of 15 lb/ft³. Overall, the NE400 Neoprene foam has excellent durability.
The NE4300 Neoprene from Pres-On is great for most HVAC, enclosure, construction and all gasket applications.

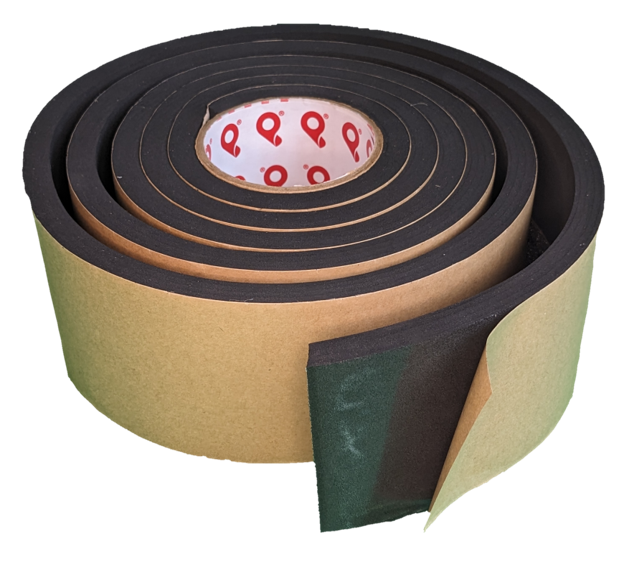

NE4400 Neoprene Foam
Pres-On’s NE4400 is a neoprene foam. It is an extra firm foam material with a smooth surface. Pres-On stocks NE4400 Neoprene with acrylic PSA on one side, but double-sided PSA or foam material with no adhesive is available as special order.
Pres-On’s NE4400 Neoprene is one of the best quality neoprene foams with an industry leading adhesive bond. It works great for outdoor applications but can only endure limited UV exposure. NE4400 Neoprene foam can withstand temperatures as low as -40°F and temperatures as high as 250°F.
This material has flammability ratings for FMVSS-302 and UL 94 HF-1. NE4400 Neoprene has an ASTM D1056 Classification of 2C4 which means it is a closed cell foam, is oil resistant with medium swell, and has a 25% compression deflection at 13-17 psi. Also, it has a density of 8-13 lb/ft³. Overall, the NE4400 Neoprene foam has excellent durability.
The NE4400 Neoprene from Pres-On is great for most HVAC, enclosure, construction and all gasket applications.
P8100UL Blended Neoprene / EPDM Foam
Pres-On’s P8100UL is a blended neoprene / EPDM foam. It is a soft foam material with a smooth surface. Pres-On stocks P8100UL Blended Neoprene / EPDM with rubber PSA on one side, but acrylic PSA, double-sided PSA or foam material with no adhesive is available as special order.
Pres-On’s P8100UL Blended Neoprene / EPDM is an industrial strength, UL listed foam with an industry leading adhesive bond. It works great for outdoor applications but can only endure limited UV exposure. P8100UL Blended Neoprene / EPDM foam can withstand temperatures as low as -40°F and temperatures as high as 250°F.
This material has flammability ratings for FMVSS-302 and UL 94 HF-1. P8100UL Blended Neoprene / EPDM has an ASTM D1056 Classification of 2C2 which means it is a closed cell foam, is oil resistant with medium swell, and has a 25% compression deflection at 5-9 psi. Also, it has a density of 4-8 lb/ft³. Overall, the P8100UL Neoprene foam has great durability.
The P8100UL Blended Neoprene / EPDM from Pres-On is great for most HVAC, enclosure, construction and all gasket applications.
P8100 Blended Neoprene / EPDM Foam
Pres-On’s P8100 is a blended neoprene / EPDM foam. It has a medium firmness and smooth surface. Pres-On stocks P8100 Blended Neoprene / EPDM with rubber PSA on one side, but acrylic PSA, double-sided PSA or foam material with no adhesive is available as special order.
Pres-On’s P8100 Blended Neoprene / EPDM is an industrial strength foam with an industry leading adhesive bond. It works great for outdoor applications but can only endure limited UV exposure. P8100 Blended Neoprene / EPDM foam can withstand temperatures as low as -40°F and temperatures as high as 250°F.
This material has flammability ratings for FMVSS-302 and UL 94 HF-1. P8100 Blended Neoprene / EPDM has an ASTM D1056 Classification of 2C2 which means it is a closed cell foam, is oil resistant with medium swell, and has a 25% compression deflection at 5-9 psi. Also, it has a density of 4-8 lb/ft³. Overall, the P8100 Neoprene foam has great durability.
The P8100 from Pres-On is great for most HVAC, enclosure, construction and all gasket applications.
P8200 Blended Neoprene / EPDM Foam
Pres-On’s P8200 is a blended neoprene / EPDM foam. It is a soft foam material with a smooth surface. Pres-On stocks P8200 Blended Neoprene / EPDM with rubber PSA on one side, but acrylic PSA, or foam material with no adhesive is available as special order. Pres-On stocks a double-sided version of this material called P8200DC.
Pres-On’s P8200 Blended Neoprene / EPDM is an industrial strength foam with an industry leading adhesive bond. It works great for outdoor applications but can only endure limited UV exposure. P8200 Blended Neoprene / EPDM foam can withstand temperatures as low as -40°F and temperatures as high as 250°F.
This material has flammability ratings for FMVSS-302 and UL 94 HF-1. P8200 Blended Neoprene / EPDM has an ASTM D1056 Classification of 2C1 which means it is a closed cell foam, is oil resistant with medium swell, and has a 25% compression deflection at 2-5 psi. Also, it has a density of 2-5 lb/ft³. Overall, the P8200 Neoprene foam has great durability.
The P8200 Blended Neoprene / EPDM from Pres-On is great for most HVAC, enclosure, construction and all gasket applications.
P8200DC Blended Neoprene / EPDM Foam
Pres-On’s P8200DC is a blended neoprene / EPDM foam. It is a soft foam material with a smooth surface. Pres-On stocks P8200DC Blended Neoprene / EPDM with rubber PSA on both sides and Pres-On stocks a single sided version of this material called P8200.
Pres-On’s P8200DC Blended Neoprene / EPDM is an industrial strength double sided foam tape with an industry leading adhesive bond. It works great for outdoor applications but can only endure limited UV exposure. P8200DC Blended Neoprene / EPDM foam can withstand temperatures as low as -40°F and temperatures as high as 250°F.
This material has flammability ratings for FMVSS-302 and UL 94 HF-1. P8200DC Blended Neoprene / EPDM has an ASTM D1056 Classification of 2C1 which means it is a closed cell foam, is oil resistant with medium swell, and has a 25% compression deflection at 2-5 psi. Also, it has a density of 2-5 lb/ft³. Overall, the P8200DC Neoprene foam has great durability.
The P8200DC from Pres-On is great for most HVAC, enclosure, construction and all gasket applications
P8300 Blended Neoprene / EPDM Foam
Pres-On’s P8300 is a blended neoprene / EPDM foam. It is a firm foam material with a smooth surface. Pres-On stocks P8300 Blended Neoprene / EPDM with rubber PSA on one side, but acrylic PSA, double-sided PSA or foam material with no adhesive is available as special order.
Pres-On’s P8300 Blended Neoprene / EPDM is an industrial strength foam with an industry leading adhesive bond. It works great for outdoor applications but can only endure limited UV exposure. P8300 Blended Neoprene / EPDM foam can withstand temperatures as low as -40°F and temperatures as high as 250°F.
This material has flammability ratings for FMVSS-302 and UL 94 HF-1. P8300 Blended Neoprene / EPDM has an ASTM D1056 Classification of 2C3 which means it is a closed cell foam, is oil resistant with medium swell, and has a 25% compression deflection at 9-13 psi. Also, it has a density of 7-11 lb/ft³. Overall, the P8300 Neoprene foam has great durability.
The P8300 Blended Neoprene / EPDM from Pres-On is great for most HVAC, enclosure, construction and all gasket applications.
P8400 Neoprene Vinyl Foam
Pres-On’s P8400 is a neoprene vinyl foam. It is a soft foam material. Pres-On stocks P8400 Neoprene Vinyl with acrylic PSA on one side, but double-sided PSA or foam material with no adhesive is available as special order.
Pres-On’s P8400 Neoprene Vinyl can be defined as a budget foam with an industry leading adhesive bond. It works great for outdoor applications but is not recommended for UV exposure. P8400 Neoprene Vinyl foam can withstand temperatures as low as -40°F and temperatures as high as 200°F.
This material has flammability ratings for FMVSS-302, UL 94 HF-1, and UL 94 V-0. P8400 Neoprene Vinyl has an ASTM D1056 Classification of 2C1/2c2 which means it is a closed cell foam, is oil resistant with medium swell, and has a 25% compression deflection at 4-6 psi. Also, it has a density of 4-5.5 lb/ft³.
The P8400 Neoprene Vinyl from Pres-On is great for most general use applications including gasketing, gap filling, vibration reduction, sealing, and curb tape.
Industries and Applications for Neoprene Foam
HVAC
Neoprene foam has various applications in the HVAC industry. Neoprene foam is used to insulate pipes as pipe wrap tape, and HVAC equipment, preventing heat loss or gain and minimizing condensation. Additionally, Neoprene foam tape is widely utilized in HVAC installations. The tape’s ability to conform to irregular surfaces and its durability make it an ideal choice for HVAC applications. It is used for sealing gaps around air vents, windows, and doors, reducing energy leakage and improving the overall efficiency of the system. Furthermore, it is often used as curb tape. Overall, Neoprene foam plays a crucial role in maintaining optimal insulation and sealing in HVAC systems, ensuring comfort, energy efficiency, and cost-effectiveness.
Filter
Neoprene foam has significant applications in the filter industry. Neoprene foam is commonly used as a sealing material for filters. Its excellent compression resilience allows it to effectively create a tight seal, preventing air or liquid from bypassing the filter. Neoprene foam also provides durability and resistance to chemicals, making it suitable for use in various filter applications.
Additionally, Neoprene foam tape is utilized for sealing the edges of filters, creating a gasket and ensuring that the filter housing remains secure when installed. The tape’s ability to adhere to different surfaces and its resistance to moisture and temperature variations make it an ideal choice for filter applications. Overall, Neoprene foam play a vital role in maintaining the integrity and effectiveness of filters, enhancing their performance and longevity in diverse industrial and commercial fields.
Construction
The construction industry benefits from the diverse applications of Neoprene foam. Neoprene foam’s flexibility allows it to conform to irregular surfaces and fill gaps, ensuring a tight seal and reducing leakage making it ideal for clean rooms and data centers. Furthermore, Neoprene foam tape finds extensive use in construction. It is commonly employed for weatherstripping doors and windows, preventing drafts and improving energy efficiency.
Neoprene foam tape also serves as a reliable sealant for gaps and joints in construction materials and can be used with wall mullions, enhancing the overall integrity and durability of structures. Overall, Neoprene foam is a valuable materials in the construction industry for insulation, sealing, and energy-saving applications.
Electronics
The electronics industry extensively utilizes Neoprene foam for a wide range of applications. Neoprene foam is commonly used as a cushioning material to protect sensitive electronic components during shipping, handling, and assembly. Its flexibility and resilience help absorb shocks and vibrations, preventing damage to delicate equipment. It is also employed for sealing and insulation purposes in electronics. It can create a secure seal around connectors, cables, and enclosures, protecting against dust, moisture, and environmental elements.
Neoprene foam tape is particularly useful in the electronics industry for bonding and mounting applications. It provides a secure and reliable attachment for components, PCBs, and display panels. The tape’s adhesive properties, combined with the cushioning and weather resistance of neoprene foam, make it an ideal choice for the demanding needs of electronic devices. In summary, Neoprene foam plays a vital role in the electronics industry, ensuring component protection, insulation, sealing, and reliable bonding.
Enclosures
The enclosures industry benefits greatly from the versatile applications of Neoprene foam. It is widely used in enclosures to provide insulation and protection against external elements. Its excellent thermal resistance helps maintain desired temperatures, while its closed-cell structure prevents moisture infiltration. Neoprene foam acts as a cushioning material, effectively absorbing shocks and vibrations, thus safeguarding the sensitive components within the enclosure.
Additionally, Neoprene foam tape is commonly utilized for sealing and bonding enclosures. It creates a tight seal around seams and joints, preventing dust, moisture, and contaminants from entering the enclosure. The tape’s adhesive properties enable secure attachment of various components or panels inside the enclosure. Overall, Neoprene foam and Neoprene foam tape play a crucial role in the enclosures industry by providing insulation, cushioning, sealing, and bonding solutions, ensuring optimal performance and protection for a wide range of applications.
RV and Marine
Neoprene foam has extensive applications in the RV and marine industry. Neoprene foam exceptional thermal resistance, helping to maintain comfortable temperatures inside cabins and preventing heat transfer from the outside. Neoprene foam also acts as a sound and vibration dampener, reducing noise and enhancing the overall comfort of occupants. Additionally, Neoprene foam tape is widely utilized for sealing applications in the RV and marine industry. It provides a reliable seal for windows, doors, hatches, and vents, preventing water, drafts, and dust from entering the interior spaces.
Neoprene foam tape is also used for mounting and cushioning applications in various components, ensuring secure attachment and protection against vibrations and impacts. In summary, Neoprene foam tape is a valuable material in the RV and marine industry, providing insulation, sound dampening, sealing, and cushioning solutions that contribute to the comfort, efficiency, and durability of recreational vehicles and marine vessels.
Packaging
Neoprene foam has become increasingly popular in the packaging industry due to their versatile applications. Neoprene foam, known for its excellent cushioning and shock absorption properties, is widely used as a protective packaging material. It is utilized to protect fragile items during transit, preventing damage from impacts and vibrations.
Additionally, Neoprene foam tape can also be applied for sealing gaps and preventing moisture or air leakage. With their durability, flexibility, and reliable adhesive properties, both Neoprene foam and Neoprene foam tape have found valuable applications in the packaging industry.
