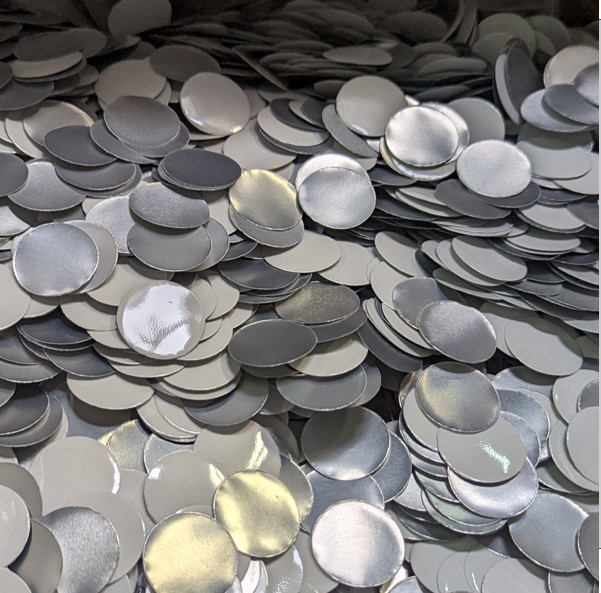

Bulk Pre-Cut Cap Liners
Bulk pre-cut cap liners are a one of the many custom solutions Pres-On can provide. With a wide range of sizes and materials, we are able to meet the diverse needs of the packaging industry. From 15 mm to 125mm Pres-On can supply standard and non-standard sizes of our bulk pre-cut bottle seals. Select from various materials including one piece heat induction foil seals, pressure seals, foam seals, two-piece heat induction seals, and Lift n’ Peel™ lid seals, each offering unique benefits and applications. Explore our extensive range of container seals to find the perfect fit for your packaging requirements.
Cap Liner Sizes
Standard Sizes
Pres-On offers bulk pre-cut cap liners for every standard size cap on the market. Standard sizes range from 20mm to 120mm bottle seals. Please see Table 1 if you are unsure what are the standard cap sizes.
Non-Standard Sizes
As a provider of custom solutions, Pres-On has a variety of non-standard size cap liners available; from 15mm to 125mm sizes. If we do not have a die to cut the liner size you need, we can have one made specifically for you. Please contact us with your cap size and we can help you find a solution.
Specialty Shapes
With years of experience in the cap liner industry, Pres-On carries an array of specialty cap liner shapes. These shapes include single tabbed, tri-tabbed, oval, and washer shapes. We can source a die to meet your requirements if we do not have your desired size and shape.
* Higher minimums and longer lead times may apply
Table 1
Standard Cap Sizes | Special Die Sizes |
---|---|
15 - 19 | |
20 | 20 - 23 |
24 | 24 - 27 |
28 | 28 - 32 |
33 | 33 - 37 |
38 | 38 - 42 |
43 | 43 - 47 |
38 | 38 - 42 |
48 | 48 - 52 |
53 | 53 - 57 |
58 | 58 - 62 |
63 | 63 - 69 |
70 | 70 - 82 |
83 | 83 - 88 |
89 | 89 - 99 |
100 | 100 - 109 |
110 | 110 - 119 |
120 | 120+ |
Cap Liner Materials
Foil Seal - Heat Induction
One piece heat induction foil seals are one of the best ways to keep products safe. They provide a hermetic seal on a closure that helps prevent leaking, spilling, or the introduction of contaminants. A good seal can also preserve product freshness. All heat induction seals need a heat induction machine to seal properly. These materials comply with FDA regulation for food contact.
Pres-On offers several types of heat induction seals depending on the container and product. There are cap liners designed to work with all bottle types; these are labeled for use on universal bottles. Pres-On also offers container seals designed to work with PE bottles, PET bottles, and glass bottles. Cap liners that are designed to work with a specific material will bind more aggressively than a universal liner while still allowing an easy clean peel.
We offer tamper-evident seals that do not peel off cleanly. When compared to clean peel seals, tamper evident seals are often more difficult to remove, or puncture the foil They leave behind evidence that the liner was tampered with.
Additionally, Pres-On offers heat induction foil seals with added barrier layer for sealing aggressive products. These seals are board or foam backed. Different lid seals are designed to work with PE bottles, PET bottles, or glass bottles. Barrier foil seals are suggested for applications that require added barrier protection for aggressive products (chemicals, oils…etc.).
* Higher minimums and longer lead times may apply depending on the liner material
-
Foil Seal, Foam Backed – Universal Bottles -HISU
One piece, heat induction foil seal, foam backed. For universal bottles (HDPE, PP, PET, PVC, PS, Glass). Airtight freshness seal…
-
Foil Seal, Foam Backed – PE Bottles -HISE
One piece, heat induction foil seal, foam backed. For PE (HDPE & LDPE), and PP bottles. Airtight freshness, aggressive seal…
-
Foil Seal, Foam Backed – PET Bottles -HIST
One piece, heat induction foil seal, foam backed. For PET and PVC bottles. Airtight freshness, aggressive seal with a clean…
-
Foil Seal, Foam Backed – Glass Bottles – HISG
One piece, heat induction foil seal, foam backed. For most glass bottles and jars. Airtight freshness, aggressive seal with a…
-
Foil Seal, Tamper Evident – Universal Bottles – TAMPER-HISU
Heat induction foil seals with tamper-evident properties, board or foam backed. For universal bottles (HDPE, PP, PET, PVC, PS, Glass).…
-
Foil Seal, Paper Backed – .008P-HISU
One piece, heat induction foil seal, .008" paper backing. For universal bottles (HDPE, PP, PET, PVC, PS, Glass). Airtight freshness…
-
Foil Seal, Paper Backed – PE Bottles – .008P-HISE
One piece, heat induction foil seal, .008" paper backing. For PE (HDPE & LDPE), and PP bottles. Airtight freshness, aggressive…
-
Foil Seal, Paper Backed – PET Bottles – .008P-HIST
One piece, heat induction foil seal, .008" paper backing. For PET and PVC bottles. Airtight freshness, aggressive seal with a…
-
Foil Seal, Paper Backed – Glass Bottles – .008P-HISG
One piece, heat induction foil seal, .008" paper backing. For most glass bottles and jars. Airtight freshness, aggressive seal with…
-
Foil Seal, Tamper Evident – PET Bottles – TAMPER-HIST
Heat induction foil seals with tamper-evident properties, board or foam backed. For PET and PVC bottles. Compared to clean peel,…
-
Foil Seal, Vented – VENT-HIS
Heat induction foil seals that vent through a paper layer. For universal bottles (HDPE, PP, PET, PVC, PS, Glass). Designed…
-
Foil Seal, Aggressive – PE Bottles – BARRIER-HISE
Heat induction foil seals with added barrier layer for sealing aggressive products, board or foam backed. For PE (HDPE &…
-
Foil Seal, Aggressive – PET Bottles – BARRIER-HIST
Heat induction foil seals with added barrier layer for sealing aggressive products, board or foam backed. For PET and PVC…
-
Foil Seal, Aggressive – Glass Bottles – BARRIER-HISG
Heat induction foil seals with added barrier layer for sealing aggressive products, board or foam backed. For most glass bottles…
-
Foil Seal, Tamper Evident – PE Bottles – TAMPER-HISE
Heat induction foil seals with tamper-evident properties, board or foam backed. For PE (HDPE & LDPE), and PP bottles. Compared…
Pressure Seal
Pressure seal liners have a pressure activated adhesive. By fully twisting the cap, the liner is pressed against the closure activating the adhesive. Some bottle materials work better with pressure seals than others, but generally these seals work with almost all plastic, metal, and glass containers. A good seal can preserve product freshness. The benefit of a pressure seal is that no heat induction machine or other specializes equipment is required.
Pres-On does not recommend pressure seals for liquids. It is the end user’s responsibility for testing the compatibility of pressure seals with any bottle, cap, and product (solid or liquid). Pressure seal materials complies with FDA regulation.
* Higher minimums and longer lead times may apply depending on the liner material
-
Pressure Seal – Universal Bottles – PS Seal – Red
Pressure seal, polystyrene foam cap liner with pressure activated adhesive. For almost all plastic, metal, and glass. Freshness gasket seal.…
-
Pressure Seal – Universal Bottles – PS Seal – Black
Pressure seal, polystyrene foam cap liner with pressure activated adhesive. For almost all plastic, metal, and glass. Freshness gasket seal.…
-
Foil Pressure Seal – Universal Bottles – Foil PS Seal – Black
Pressure seal foil, polystyrene foam with an inner foil seal and pressure activated adhesive. For almost all plastic, metal, and…
-
Pressure Seal – Universal Bottles – ECO Seal – Kraft
Pressure seal, kraft board liner with pressure activated adhesive. For sealing almost all plastic, metal, and glass bottles. Recommended for…
Foam Liner
Foam Liners, also known as compression seals, are made of polyethylene, or PE, foam. They are made of three layers of extruded PE. The benefit of a foam liner is it’s enhanced reseal performance on a closure. Compression liners do not have any adhesive and helps seal the product inside the closure with compression only.
Most common thickness is .020″. Thicker liners may be required to best fit the compression space between the cap and bottle neck, this may vary based on cap and bottle design. Material complies with FDA regulation.
* Higher minimums and longer lead times may apply depending on the liner material
-
PE Foam Liner – .020″
Polyethylene foam cap liner, compression seal made from 3 layers of coextruded PE, for enhanced reseal closure liner performance, .020"…
-
PE Foam Liner – .030″
Polyethylene foam cap liner, compression seal made from 3 layers of coextruded PE, for enhanced reseal closure liner performance, .030"…
-
PE Foam Liner – .040″
Polyethylene foam cap liner, compression seal made from 3 layers of coextruded PE, for enhanced reseal closure liner performance, .040"…
-
PE Foam Liner – .050″
Polyethylene foam cap liner, compression seal made from 3 layers of coextruded PE, for enhanced reseal closure liner performance, .050"…
Two-Piece Heat Induction Seal
Two piece heat induction foil seals are similar to their one piece counterparts. They are one of the best ways to keep products safe. They provide an airtight seal on a closure that helps prevent leaking, spilling, or the introduction of contaminants. A good seal can also preserve product freshness.
The difference between a one piece and a two piece seal is that a two piece seal has a backing that separates during the heat induction process. The backing can be made of pulp board or foam. It then acts as reseal liner that will remain in the cap to help prevent leaks after the foil seal is removed by the consumer.
Pres-On offers several types of heat induction seals depending on the container. There are lid seals designed to work with all bottle types; these are labeled for use on universal bottles. Pres-On also offers container seals designed to work with PE bottles, PET bottles, and glass bottles. Cap liners that are designed to work with a specific material will bind more aggressively than a universal liner while still allowing an easy clean peel.
All heat induction seals need a heat induction machine to seal properly. Two piece heat induction seals are recommended for liquid and dry products. These materials comply with FDA regulation for food contact.
* Higher minimums and longer lead times may apply depending on the liner material
-
2 Piece Foil Seal – PE Bottles – 2PC-HISE
Two-piece, heat induction foil seal, board or foam backed. For PE (HDPE & LDPE), and PP bottles. Airtight freshness seal…
-
2 Piece Foil Seal – PET Bottles – 2PC-HIST
Two-piece, heat induction foil seal, board or foam backed. For PET and PVC bottles. Airtight freshness seal with a clean…
-
2 Piece Foil Seal – Glass Bottles – 2PC-HISG
Two-piece, heat induction foil seal, board or foam backed. For most glass bottles and jars. Airtight freshness seal with a…
-
2 Piece Foil Seal – Universal Bottles – 2PC-HISU
Two-piece, heat induction foil seal, board or foam backed. For universal bottles (HDPE, PP, PET, PVC, PS, Glass). Airtight freshness…
Lift n' Peel™
Lift ‘n’ Peel™ is a one piece, heat induction foil seal with a foam backing and a revolutionary pull tap. They provide an airtight seal on a closure that helps prevent leaking or spilling and the introduction of contaminants. A good seal can also preserve product freshness. Just like all heat induction foil seals, Lift ‘n’ Peel™ need a heat induction machine to seal properly. These materials comply with FDA regulation for food contact.
Pres-On offers several variations of Lift ‘n’ Peel™ cap liners depending on the container and product. There are seals designed to work with all bottle types; these are labeled for use on universal bottles. Pres-On also offers Lift ‘n’ Peel™ container seals designed to work with PE bottles, PET bottles, and glass bottles. Cap liners that are designed to work with a specific material will bind more aggressively than a universal liner while still allowing an easy clean peel.
Lift ‘n’ Peel™ is a trademark of Selig Sealing Products, Inc.
* Higher minimums and longer lead times may apply to this liner material
-
Lift ‘n’ Peel™ – Universal Bottles – LNP-U
Lift 'n' Peel™, One piece, heat induction foil seal, foam backed with pull tab. For universal bottles (HDPE, PP, PET,…
-
Lift ‘n’ Peel™ – PE Bottles -LNP-E
Lift 'n' Peel™, One piece, heat induction foil seal, foam backed with pull tab. For PE (HDPE & LDPE), and…
-
Lift ‘n’ Peel™ – PET Bottles -LNP-T
Lift 'n' Peel™, One piece, heat induction foil seal, foam backed with pull tab. For PET and PVC bottles. Airtight…
-
Lift ‘n’ Peel™ – Glass Bottles – LNP-G
Lift 'n' Peel™, One piece, heat induction foil seal, foam backed with pull tab. For most glass bottles and jars.…
Addtional Cap Liner Services
-
Cap Liner Insertion
Pres-On offers the turnkey solution of lining your caps. Our high-speed automatic cap lining machine, or hand lining services specialty…
-
Cap Liner Extraction
Pres-On offers the ability to remove liners from your caps. We came up with an innovative solution by adapting our…
-
Specific Liner Materials
Pres-On has stock and the ability to source specific cap liner materials from industry leading material manufactures, such as Selig,…
